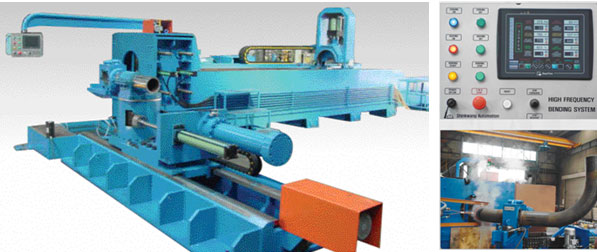

CNC Pipe Bending Machine |
| |
- Application : Pipe bending
- Diameter : 15A~65A / 65A~100A / 100A~600A / 600A~1000A (D)
- Speed : 20вк/sec / 15вк/sec / 15~50 m/min / 15~50 m/min
- Radius : 2.5D~3D / 2.5D~3D / 2D~5D / 3D~5D
- Length : max 6 m / max 6 m / max 12 m / max 15 m
- Machine weight: 5.5 tons / 7.5 tons / 45 tons / 55 tons
- CNC bending |
|

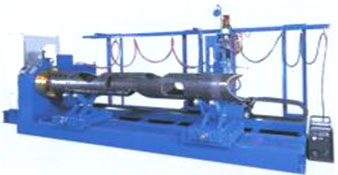

CNC Pipe Coaster |
| |
- Application : Pipe cutting
- Diameter : 65A~600A / 65A~800A
- Length : up to 10 m
- Cutting : by Plasma or Gas |
|
 |
 |
|
Band Saw Machine |
| |
-Product: Plate and profile
- Thickness : 6 ~ 50 mm
- Width : 500 ~ 3,000 mm
- Length : 3,000 ~ 22,000 mm |
|
|

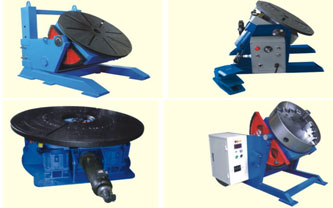

Positioner |
| |
- Tilting type
- Turn table type
- Chucking type
- Up to 20 tons capacity
- Pipe capacity: 125~600A / 125~1000A |
|
 |
 |
|
Rotator (Turning
Roll) |
| |
- Conventional Turning roll
- Self-aligned Turning roll
- Anti-creep function available
- With fit up unit and welder
- Up to 500 tons capacity |
|
|

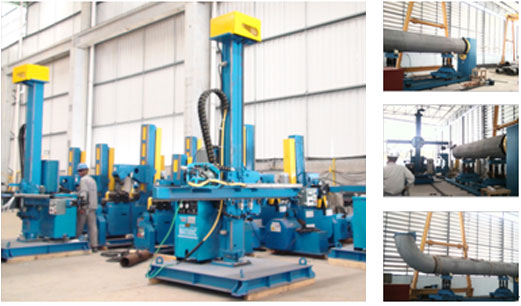

Manipulator |
| |
- Welding carriage |
|
