Roll forming line


Roll forming line


1. Roll forming line
Roll forming line
Specification
  Roll forming lineMaterial: CR, HR, GI, EGI, Color steel
  Roll forming lineThickness: 0.3~1.6 mm
  Roll forming lineType of roll forming
    - Deck plate
- Tiled plate
- C & Z channel
- Shutter & Door plate
  Roll forming lineLine speed: max 30 m/min
  Roll forming lineMaterial of rolls: S45C, SKD
  Roll forming linenstall area: 1,400 W x 1,200 mm H x 18,000 L


Roll forming line

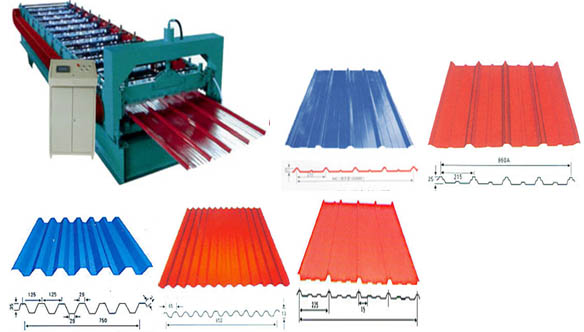

Deck plate
Roll forming line
Roll forming line

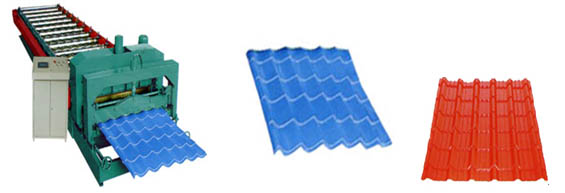

Tiled plate
Roll forming line
Roll forming line

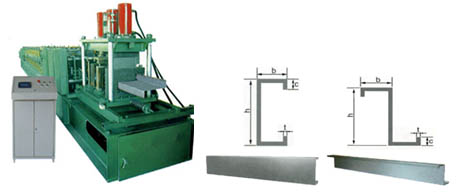

C & Z channel
Roll forming line
Roll forming line

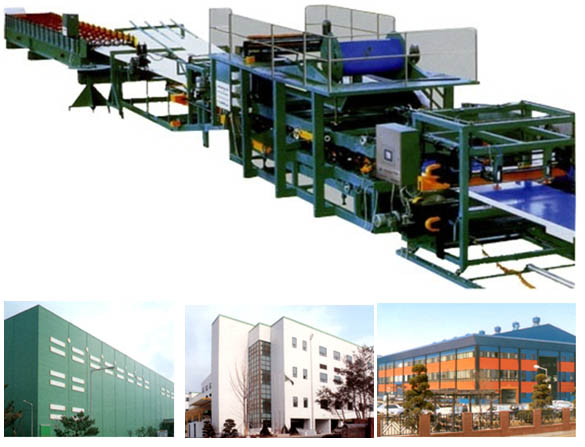

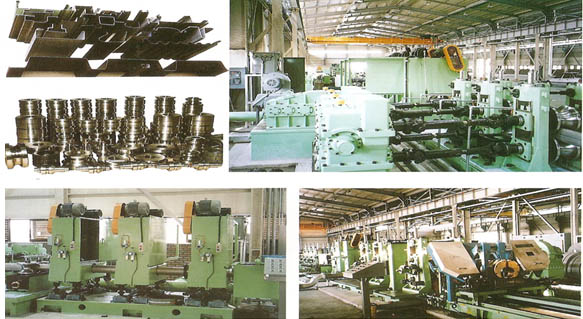

Photos
Roll forming line

Roll forming line



2. Roll forming line - Guardrail forming line
Roll forming line
Specification
  Roll forming lineMaterial: HR, GI, SS400, Q235
  Roll forming lineThickness: 2.5~3.0 mm
  Roll forming lineWidth: 482 mm
  Roll forming lineLine speed: 8 m/min
  Roll forming lineMachine size: 1,600 W x 2,600 mm H x 16,000 L
  Roll forming lineMaterial of rolls: SKD
Roll forming line

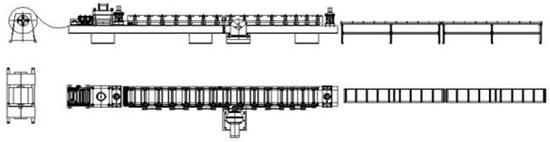

Roll forming line Layout
Roll forming line

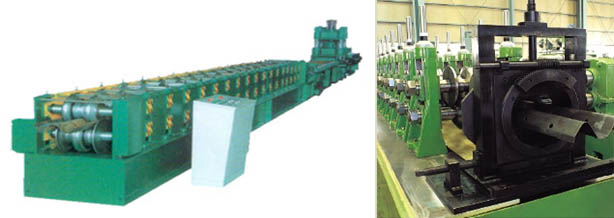

Roll forming line Photos
Roll forming line


3. Sandwich Panel Production Line
Roll forming line
Specification
  Roll forming lineMaterial: Color steel
  Roll forming lineThickness: 0.5~0.8 mm
  Roll forming lineType of panel
    - Corrugated roof
- Deep beaded wall
- Slight beaded wall
- Blotless wall
  Roll forming linePanel thickness: 50, 75, 100, 125, 150, 200 mm
  Roll forming linePanel width: 1,000 mm
  Roll forming linePanel length: 2~18 m
  Roll forming lineLine speed: 4~10 m/min
  Roll forming lineAnnual production capacity: abt. 1,000,000 m©÷
  Roll forming linePoly-urethane foam: 40¡¾5kg/§©
  Roll forming lineElectric power : Approx. 400kw
  Roll forming lineInstall area : 3m W x 3m H x 40m L
      (need EOTC 7.5 ~ 10 ton)
Roll forming line

Roll forming line

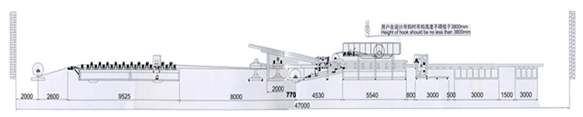

Layout
Roll forming line

Descriptions
PU/PIR
EPS
GLASS
WOOL
MINERAL
WOOL
CONCRETE
Steel thickness (mm)
0.5~0.8
0.4~0.8
0.4~0.8
0.4~0.8
-
Density (kg/§©)
40 ¡¾5
15~35
48~64
100~120
22,000
Thermal Conductivity
(kcal/mh'c)
0.0185
0.034
0.032
0.053
1.4
Panel length (m)
2~18
2~18
2~18
2~18
-
Panel thickness (mm)
35~200
50~200
50~200
50~200
-
Production speed (m/min)
4~10
8~10
4~8
4~8
-
Annual production capacity
(§³)
1,000,000
1,000,000
800,000
800,000
-
Fire resistance
Acceptable
Poor
Good
Good
Good
Merits for sandwich panel
 Thermal insulation, Water and moisture proofing, Sound insulation, High solidity, Sanitation, Fire and heat resistance, Light product, Easy & Fast construction, Save cost, Energy saving

Roll forming line

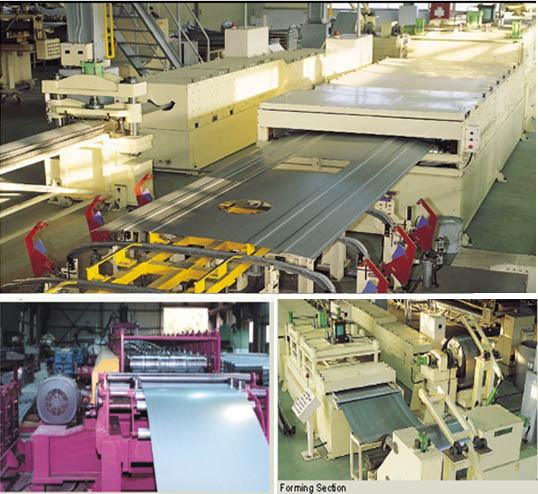

Photos
Roll forming line
